PRODUCT
It is the responsibility of the builder to
ensure that the product meets aesthetic
requirements before installation.
Our Factory will not be responsible for
rectifying obvious aesthetic surface
variations following installation.

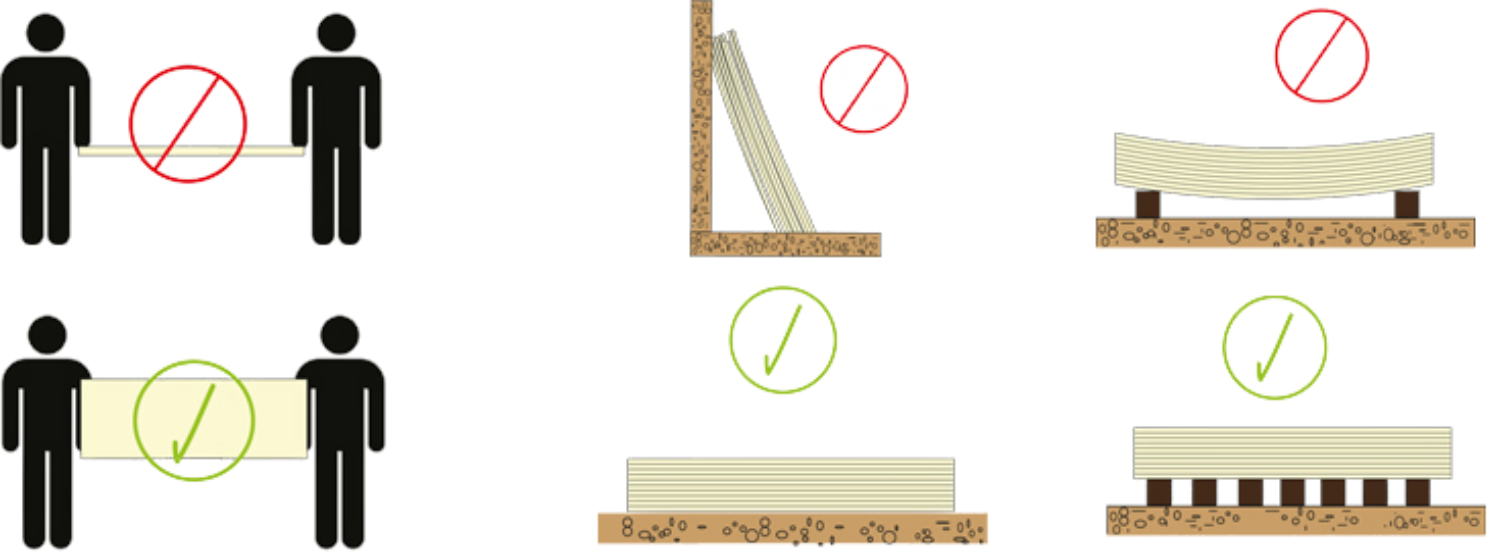

MGO Premium boards must be stored
flat on a smooth surface. Precaution
should be taken that edges and corners
are protected from damage.
Ensure that all boards are stored under
cover and kept dry. If boards become wet
they must be dried prior to installation.
Carry boardsin the vertical position as
this will avoid bending and possible
breakage.
Boardply MGO board is a fire proof and a thermal insulation building material. It can be used for a number of applications including
wall and ceiling linings, exterior cladding, fascia’s, soffits, tile backing and flooring underlay.
Boardply MGO Board is non-combustible and can achieve fire ratings as high as 4 hours given the correct installation. It can be used
for sound studios, schools, public areas, movie theatre’s, train and bus partitioning, boat partitioning, shopping centres and any area
where the fireproof function is necessary.
•
Non-combustible Class A Building Material
•
Breathable and porous for strong coating and adhesive bond
•
For ALL Residential, Commercial, Industrial and Institutional Construction
•
Excellent acoustic dampening material with higher density and elasticity
•
Refractory material for infrared radiation (heat) assisting to reduce loss of energy
when heating or cooling by reducing conductivity.
•
Non-hazardous, natural, non-toxic and disposable as crushable clean fill.
•
Stronger and more rigid to allow thinner material to do the same job
•
Easier to work with using all types of hand tools and wood working equipment but
also can be cut with quick score and snap faster than drywall

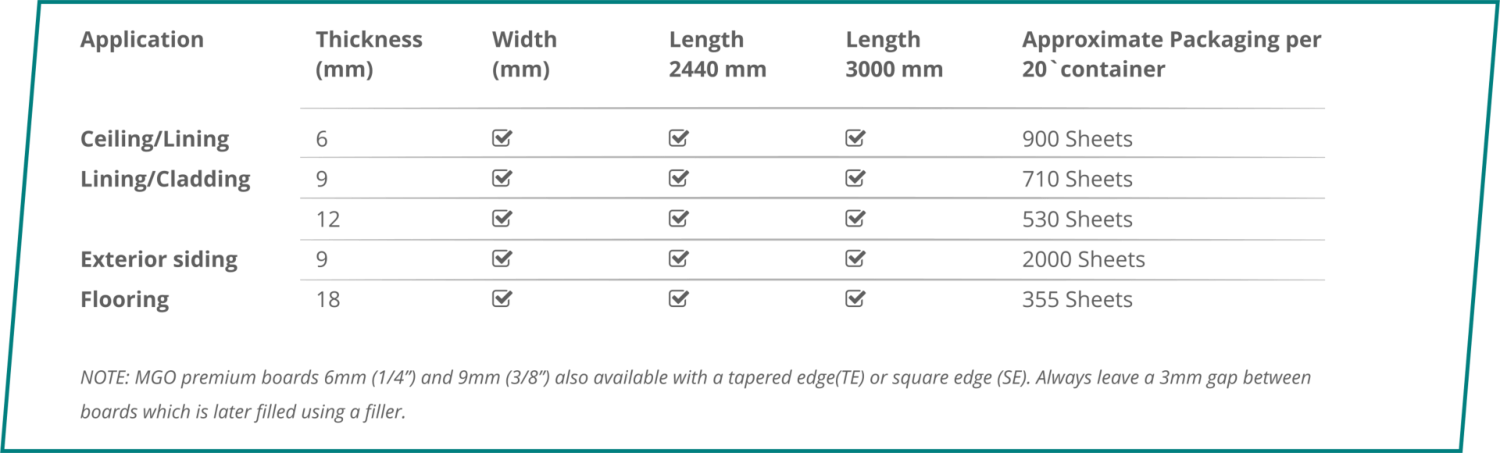

Application
Thickness
Width
Length
Length
Approximate Packaging per
(mm)
(mm)
2440 mm
3000 mm
20`container
Ceiling/Lining
6
900 Sheets
Lining/Cladding
9
710 Sheets
12
530 Sheets
Exterior siding
9
2000 Sheets
Flooring
18
355 Sheets
NOTE: MGO premium boards 6mm (1/4”) and 9mm (3/8”) also available with a tapered edge(TE) or square edge (SE). Always leave a 3mm gap between
boards which is later filled using a filler.

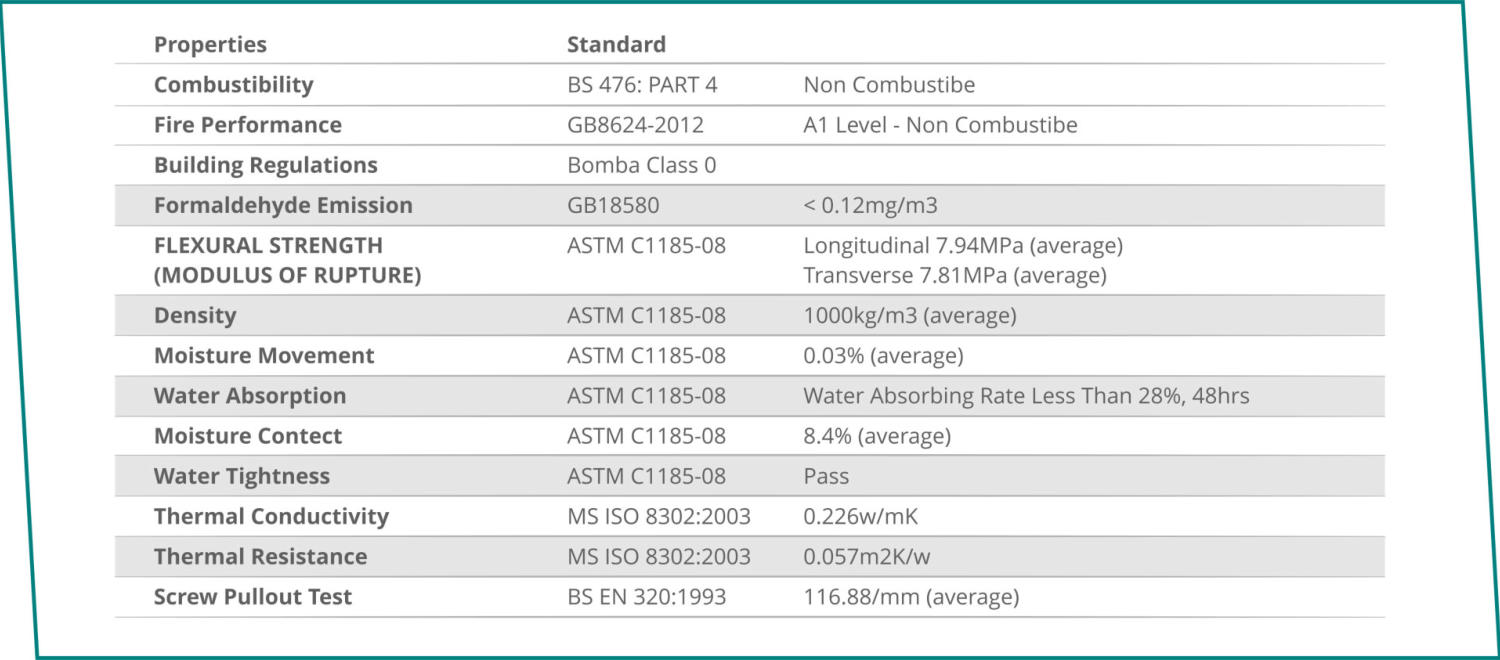

Properties
Standard
Combustibility
BS 476: PART 4
Non Combustibe
Fire Performance
GB8624-2012
A1 Level - Non Combustibe
Building Regulations
Bomba Class 0
Formaldehyde Emission
GB18580
< 0.12mg/m3
FLEXURAL STRENGTH
ASTM C1185-08
Longitudinal 7.94MPa (average)
(MODULUS OF RUPTURE)
Transverse 7.81MPa (average)
Density
ASTM C1185-08
1000kg/m3 (average)
Moisture Movement
ASTM C1185-08
0.03% (average)
Water Absorption
ASTM C1185-08
Water Absorbing Rate Less Than 28%, 48hrs
Moisture Contect
ASTM C1185-08
8.4% (average)
Water Tightness
ASTM C1185-08
Pass
Thermal Conductivity
MS ISO 8302:2003
0.226w/mK
Thermal Resistance
MS ISO 8302:2003
0.057m2K/w
Screw Pullout Test
BS EN 320:1993
116.88/mm (average)
Boardply MGO Board
Boardply MGO Board Features
Sizes and Packaging
Boardply MGO Board Physical Properties
Storage and Handling
Boardply MGO Board Your Best Choice
Excellent On Fire Resistance
Excellent On Water Resistance
