BOARDPLY
氧化镁板的好处
保护生态环境
无化学药品
防水
防火
防白蚁
膈应效果
玻璃纤维网格布
木屑
无纺布
Mgs04
氧化镁粉
合成物:
氧化镁板的材料是氧化镁, 镁氯化物
(MGSO4 ), 玻璃纤维, 锯末和珍珠岩
MGO
: 62.611%
P
2
O
5
: 1.100%
SO
3
: 15.007%
K
2
O
: 0.251%
CaO
: 7.436%
MnO
: 0.233%
SiO
2
: 7.306%
CuO
: 0.108%
Fe
2
O
3
: 4.756%
Br
: 0.057%
CI
: 1.137%
© 2018 Board Ply Trading Sdn. Bhd. All Rights Reserved
Boardply 氧化镁板
Board Ply Trading Sdn Bhd 在马来西亚从事板材
供应商业务超过10年,也是马来西亚最大的
氧化镁板供应商。
BOARDPLY
氧化镁板特质
Boardply 氧化镁板主要特质
•
防火特性:A级不燃性 (GB8624)
•
密度: 0.9-1.1g/cm3 (GB/T7019-1997)
•
干燥时的抗曲强度: 18Mpa (GB/T7019-1997)
•
潮湿时的抗曲强度: 22Mpa (GB/T7019-1997)
•
吸收水分时的变形速率: 0.26% (GA160-1997)
•
加热时的收缩速率: 1.0% (GA160-1997)
•
水的渗透性:没有一滴水从后面冒出来 (CNS13778)
•
耐冲击:无裂纹, 无割痕, 无贯穿 (CNS13778)
•
热阻: 1.14m2k/w (GB/T 13475-92)
•
隔音: ≥44db (GBJ121-88)
•
颜色: 白色或灰色
•
安全性: 100%不含石棉, 甲醛和苯
•
放射性;不受适用范围的限制 (GB6566-2001)
标准尺寸:
•
1220*2440mm / 915*2335mm
厚度:
•
6-19mm
符合标准:
•
GB 8624-2006
•
GB8624-2012
•
GB/7 20285-2006
•
MG S04
其他要求可以定制.
CE, ISO 认可.
Magnesium Sulfate Mgo Board Physical Data
Combustibity
BS 476: PART4
Non Combustibe
Fire Performance
GB8624-2012
A1 level - Non Combustibe
Building Regulations
Bomba Class O
Formaldehyde Emission
GB18580
<0.12mg/m
3
Flexural Strength
ASTM C1185-08
Longitudinal 7.94MPa (average)
(Modulus of Rupture
Transverse 7.81Mpa
Density
ASTM C1185-08
1000kg/m
3
(average)
Moisture Movement
ASTM C1185-08
0.03% (average)
Water Absorption
ASTM C1185-08
Water Absorbing Rate Less Than
28%. 48hrs
Moisture Contect
ASTM C1185-08
8.4% (average)
Water Tightness
ASTM C1185-08
Pass
Thermal Conductivity
MS ISO 8302:2003
0.226w/mk
Thermal Resistance
MS ISO 8302:2003
0.057m
2
k/w
Screw Pullout Test
BS EN 320:1993
116.88N/mm (average)
Material Properties
Surface Condition
Front Face: Smooth
Back Face: Sanded
Thickness Tolerance
±0.5mm
Dimension Tolerance
±0.5mm
Colour
White/Light Grey
Chloride Ion Content
<1.2%
Raw Materials
Chloride free MGO Board is stoutly made from Magnesium oxide, magnesium sulfate, wood
fiber, perlite, small glass cloth and others
Environmental Friendly
This material is formed by natural resources, such as inorganic substance, plant
fiber, etc. Its radioactivity is much lower than the national standard, meeting national
request of environmental protection, and it is the new product that is encouraged by
state policy.
It is 100% free of harmful and carcinogenic substance, such as asbestos, formaldehyde
and benzene. No poisonsmoke in case of fire, creating a green & healty living space.
Toxin Free and Harmless
Boardply MGO board is made of natural, safe components. It does not contain
formaldehyde or any other volatile substances harmful, which is confirmed by
resulting The Hygienic Certificate. The coated Boardply MGO board outer
layer is resistant to formation of mold , even in high humidity.
It is formaldehyde free, suitable for food production workshops, hospital operating
rooms and manufacturing industries.
Water Resistant
Boardply MGO board’s retain their excellent dimensional stability even in damp and humid
conditions and can be installed at an early stage in the construction programme,
before wet trades are completed and the building is weather-tight.
Through experiment and testing, Boardply has established that after Boardply MGO
board has been immersed in the water for one month, it keeps its original shape,
without deformation or expansion, its dry-wet deforming ratio is 0.26%, its water
absorbing capacity is 15%, and the creasing resistance is 15Mpa under dry
conditions and 22 Mpa under moist conditions.
Fire Resistant
Boardply MGO board is non combustible and can achieve fire ratings as high as 4
hours given the correct installation it can be used for sound studios , schools, public
areas, movie theatre’s, train partitioning, bus partitioning, boat partitioning, shopping
centres, any area where the fireproof function is necessary.
The material is classed A class as tested by many international testing authorities. It
has been tested to the international standards for fire.
防白蚁
Boardply氧化镁板不会被白蚁吃白蚁损害。Boardply氧化镁板由一个完全
独特的和无毒的复合材料混合, 防火板是不受白蚁和类似物影响的。
经常使用昂贵的化学品, 控制这些白蚁的成本会很高无论是否符合人类安
全标准, 都有其他不良行为对环境的影响。
Boardply氧化镁板不能吃白蚁,不感兴趣的。如果你的木家框架是完全穿着
Boardply氧化镁板没有白蚁危害发生,他们只会走开。

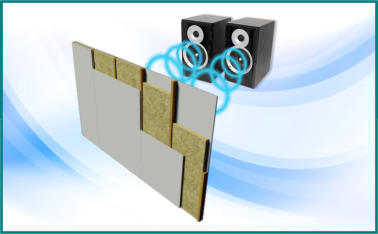

隔音
Boardply 氧化镁板是工厂预制块板产品。他们可以广泛应用于墙面, 天花
板衬里等。Boardply 氧化镁板也用于结构用途, 如墙壁支撑和半结构目的,
如地板的底部。
Boardply 氧化镁板和石膏板相似, 但是有几个改进的属性, 如耐火性, 耐候
性, 强度, 抗霉性, 柔韧性, 附着力等等。
Boardply 氧化镁板可用于建筑与各种厚度和表的大小。当你的指关节发出
“硬”的声音, 就像水泥一样纤维板。我们有世界上最大的氧化镁沉淀, 足以
补充世界数百年。
