BOARDPLY MGO BOARD ADVANTAGES
Environmentally
Friendly
Toxin Free and
Harmless
Water
Resistant
Fire
Resistant
Termite
Resistant
Sound
Insulation
Fiberglass Mesh
Sawdust
Non-Woven
Fabric
Mgs04
Magnesium Oxide Powder
Composition:
The materials of mgo board are Magnesium
Sulfate Board (MGSO4 ), Fiberglass, Sawdust
and Perlite
MGO
: 62.611%
P
2
O
5
: 1.100%
SO
3
: 15.007%
K
2
O
: 0.251%
CaO
: 7.436%
MnO
: 0.233%
SiO
2
: 7.306%
CuO
: 0.108%
Fe
2
O
3
: 4.756%
Br
: 0.057%
CI
: 1.137%
© 2018 Board Ply Trading Sdn. Bhd. All Rights Reserved
Boardply MGO Board
Board Ply Trading Sdn Bhd has ventured in the wood
supplier business for over 10 years in Malaysia and is
also the biggest MGO Board supplier in Malaysia.
BOARDPLY MGO BOARD CHARACTERISTICS
Boardply Mgo board Main characteristics
•
Fireproofinfg characteristic:A grade non
combustible (GB8624)
•
Density: 0.9-1.1g/cm3 (GB/T7019-1997)
•
Intensity of bending resistance when dry: 18Mpa
(GB/T7019-1997)
•
Intensity of bending resistance when moisture-saturated
condition:22Mpa (GB/T7019-1997)
•
The rate of deformation when pick up the moisture:0.26%
(GA160-1997)
•
The shrinking rate when heated: 1.0% (GA160-1997)
•
Water permeability:there is no drop of water to emerge in
the back (CNS13778)
•
Impact resistance:No crack,strip and run through
(CNS13778)
•
Thermal resistance: 1.14m2k/w (GB/T 13475-92)
•
Sound insulation: ≥44db (GBJ121-88)
•
Color: white or grey
•
Security: 100% does not include the asbestos,
formaldehyde, and benzene
•
Radioactivity;Not limited by the scope of application
(GB6566-2001)
Standared Size:
•
1220*2440mm / 915*2335mm
Thickness:
•
6-19mm
Compliance Standards
•
GB 8624-2006
•
GB8624-2012
•
GB/7 20285-2006
•
MG S04
Other requires can be customized.
CE, ISO approved.
Magnesium Sulfate Mgo Board Physical Data
Combustibity
BS 476: PART4
Non Combustibe
Fire Performance
GB8624-2012
A1 level - Non Combustibe
Building Regulations
Bomba Class O
Formaldehyde Emission
GB18580
<0.12mg/m
3
Flexural Strength
ASTM C1185-08
Longitudinal 7.94MPa (average)
(Modulus of Rupture
Transverse 7.81Mpa
Density
ASTM C1185-08
1000kg/m
3
(average)
Moisture Movement
ASTM C1185-08
0.03% (average)
Water Absorption
ASTM C1185-08
Water Absorbing Rate Less Than
28%. 48hrs
Moisture Contect
ASTM C1185-08
8.4% (average)
Water Tightness
ASTM C1185-08
Pass
Thermal Conductivity
MS ISO 8302:2003
0.226w/mk
Thermal Resistance
MS ISO 8302:2003
0.057m
2
k/w
Screw Pullout Test
BS EN 320:1993
116.88N/mm (average)
Material Properties
Surface Condition
Front Face: Smooth
Back Face: Sanded
Thickness Tolerance
±0.5mm
Dimension Tolerance
±0.5mm
Colour
White/Light Grey
Chloride Ion Content
<1.2%
Raw Materials
Chloride free MGO Board is stoutly made from Magnesium oxide, magnesium sulfate, wood
fiber, perlite, small glass cloth and others
Environmental Friendly
This material is formed by natural resources, such as inorganic substance, plant
fiber, etc. Its radioactivity is much lower than the national standard, meeting national
request of environmental protection, and it is the new product that is encouraged by
state policy.
It is 100% free of harmful and carcinogenic substance, such as asbestos, formaldehyde
and benzene. No poisonsmoke in case of fire, creating a green & healty living space.
Toxin Free and Harmless
Boardply MGO board is made of natural, safe components. It does not contain
formaldehyde or any other volatile substances harmful, which is confirmed by
resulting The Hygienic Certificate. The coated Boardply MGO board outer
layer is resistant to formation of mold , even in high humidity.
It is formaldehyde free, suitable for food production workshops, hospital operating
rooms and manufacturing industries.
Water Resistant
Boardply MGO board’s retain their excellent dimensional stability even in damp and humid
conditions and can be installed at an early stage in the construction programme,
before wet trades are completed and the building is weather-tight.
Through experiment and testing, Boardply has established that after Boardply MGO
board has been immersed in the water for one month, it keeps its original shape,
without deformation or expansion, its dry-wet deforming ratio is 0.26%, its water
absorbing capacity is 15%, and the creasing resistance is 15Mpa under dry
conditions and 22 Mpa under moist conditions.

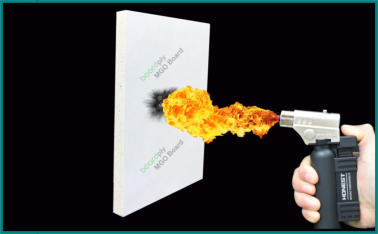

Fire Resistant
Boardply MGO board is non combustible and can achieve fire ratings as high as 4
hours given the correct installation it can be used for sound studios , schools, public
areas, movie theatre’s, train partitioning, bus partitioning, boat partitioning, shopping
centres, any area where the fireproof function is necessary.
The material is classed A class as tested by many international testing authorities. It
has been tested to the international standards for fire.
Termite Resistant
Boardply MGO board will not be eaten damaged by White Ants termite damage.
Boardply MGO board made from a completely unique and non-toxic fiber composite mix,
fireproof board is impervious to termites and the like.
Control of these termites can be very costly with regular use of expensive chemicals
regardless of being approved in human safety or not, do have other undesirable
effects on the environment.
Boardply MGO board is inedible to termites and of no interest to any of them. If your
timber home framing is clad totally in Boardply MGO board no termite damage will occur,
they will just walk away.

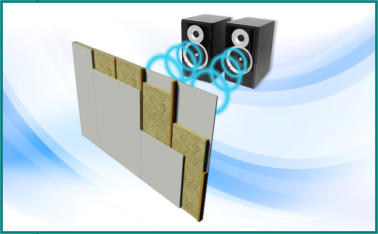

Sound Insulation
Boardply MGO boards are a factory-made sound block board products. They can
be used in many applications, including walls and ceiling linings. Boardply MGO boards
are also used for structural purposes, such as for wall support, and for semi-structural
purposes, such as the bottom of the floor.
Boardply MGO boards are similar to gypsum board, but with several improved properties,
such as fire resistance, weatherability, strength, mildew resistance, flexibility, adhesion
and so on.
Boardply MGO boards can be used for construction with a variety of thickness
and sheet size. There is a “hard” sound when your knuckles, something like cement
fibreboard. We has the world’s largest magnesium oxide deposit, enough to
supplement the world for hundreds of years.
